UDT Wireline Retrievable
Dummy Valves
Dummy valves are also installed in the side pocket mandrel during pressure testing of tubing and casing strings.
UDT Wireline Retrievable Dummy Valves
Dummy valves are used to blank off communication between tubing and casing. In new installations, dummies can be retained in the mandrels until gas lift valves are required to maintain production. Then, dummies are pulled and gas lift valves and orifice valves are installed by Wireline. During the life of the well, gas lift valves installed above the fluid level can be replaced with dummies to block off injection gas or fluids. Dummy valves are also installed in the side pocket mandrel during pressure testing of tubing and casing strings.
Operations
Communication between the tubing and the casing is positively sealed off until the dummy valve is retrieved from the side pocket mandrel using standard slickline method.
Special Features
- Field proven design and operation.
- Manufactured from a variety of premium grade materials to provide corrosion and erosion resistance for the intended application. Stainless steel or Monel options are typically utilized for the outer and main body components.
- Inspection and testing as per the stringent requirements of API 19G2 Specifications.
Key features of all UDT Swift Connectors
Self-aligned & no cross threading
Strength characteristics higher than casing pipe.
Make-up in 4 turn from stab to full make up
4 turn rotation make-up prevents connector back-off
Suitable for piling/jetting.
Visual indication of make-up
Low torque make-up with rig tongs.
Preloaded for fatigues.
High-pressure sealing.
Reversible and reusable

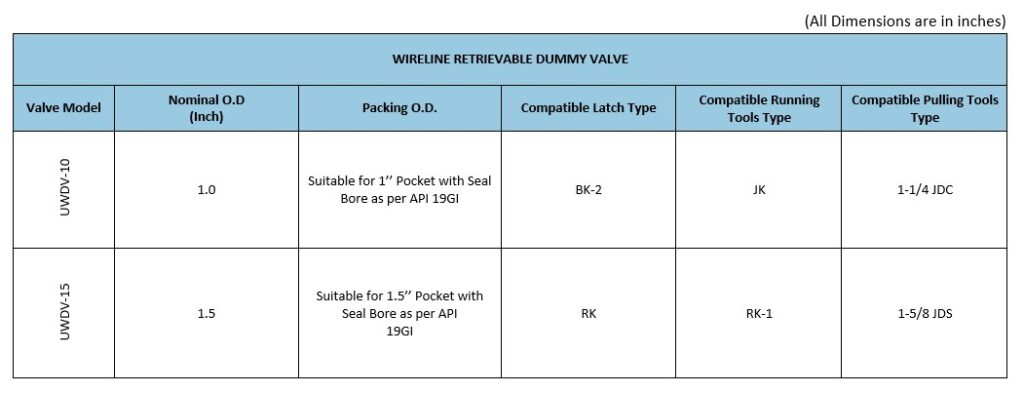

ENGINEERING DATA FOR WIRELINE RETRIEVABLE DUMMY VALVE
