UDT Puma
Connectors

These connectors do not need any special tools for lowering and can be installed using conventional casing tongs.

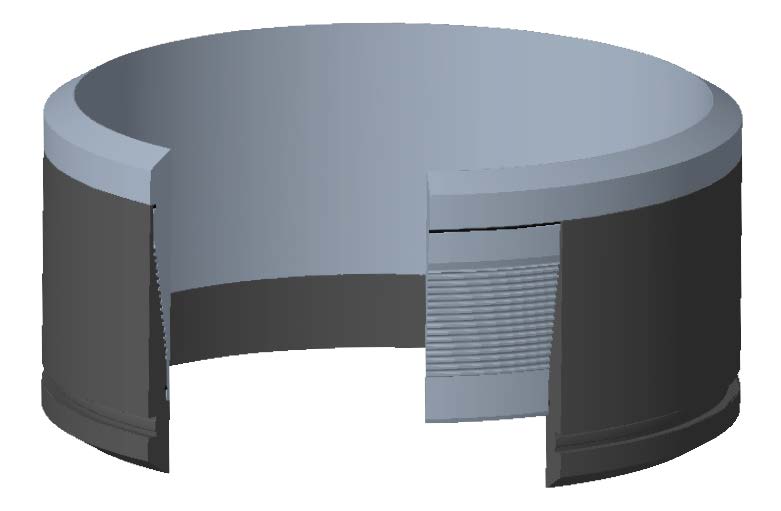

udt pume conncetor

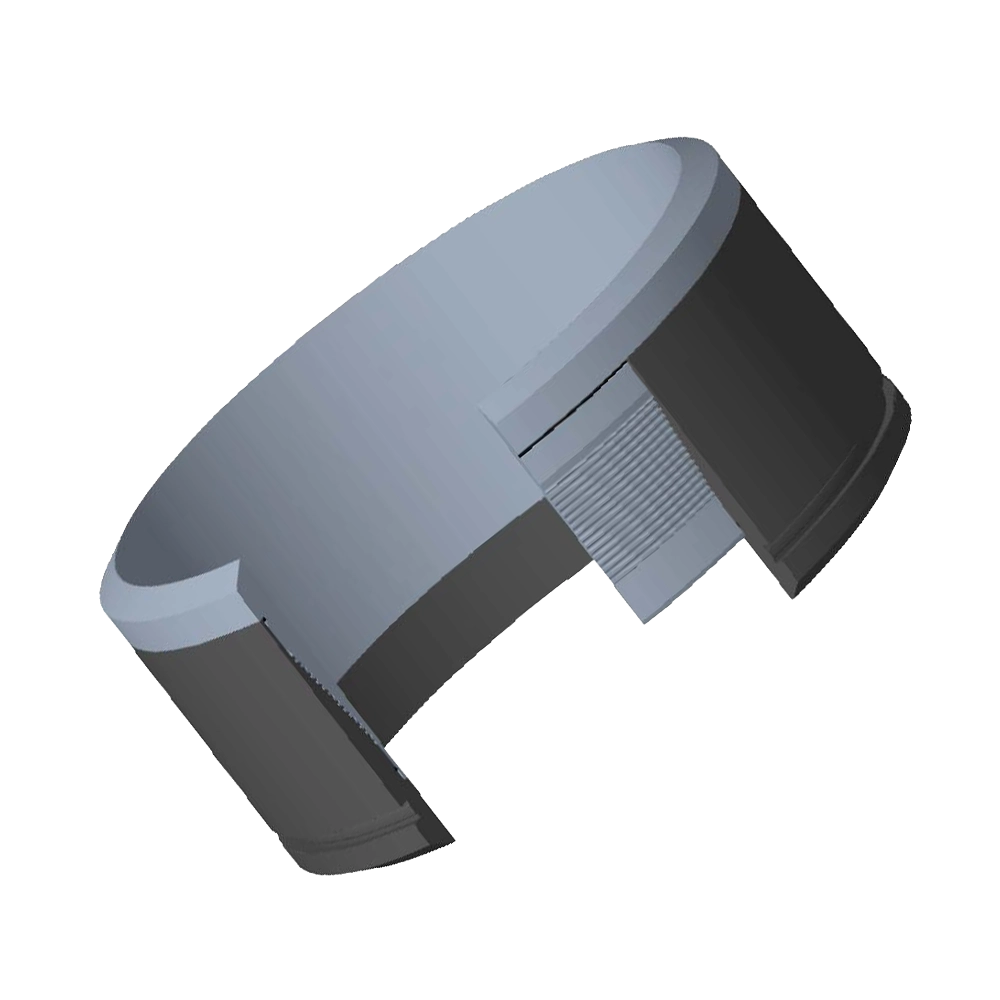

UDT Puma Flush OD and Flush ID Connectors

UDT Puma is a threaded connector with both OD & ID flush feature suitable for use in oil wells where size restriction precludes the use of upset casing connectors.

The connector is suitable for driving applications and utilizes high strength material to enable the connection to exceed the pipe physical properties.

These connectors do not need any special tools for lowering and can be installed using conventional casing tongs.

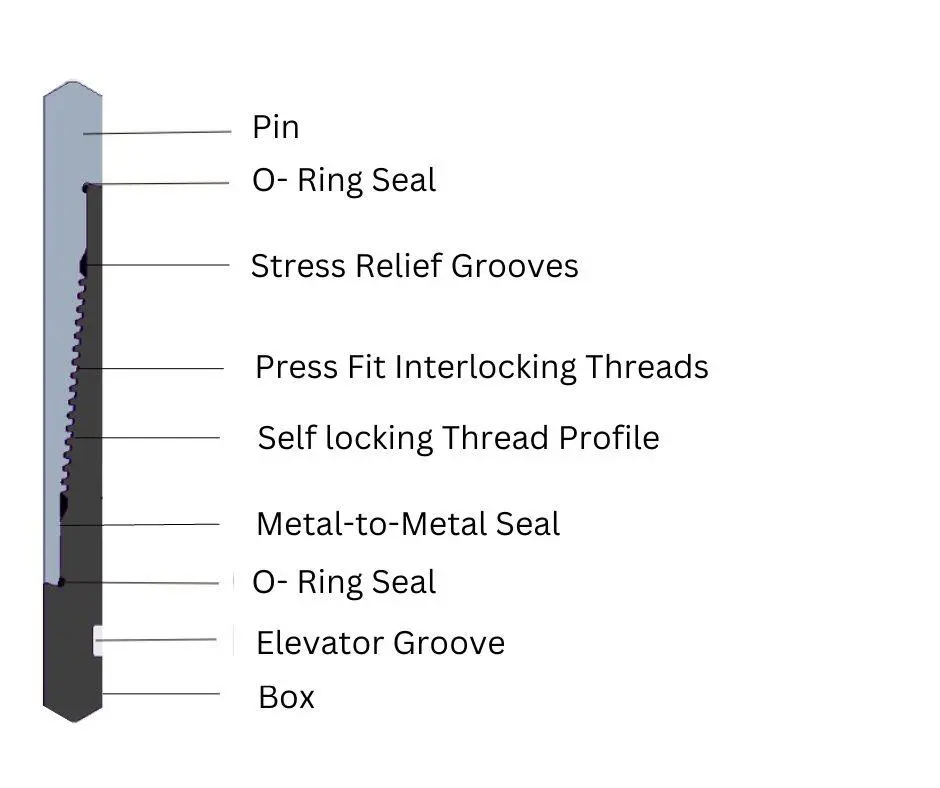

Key features of UDT Puma Connector

special features

  • Flush OD flush ID.
  • Suitable for piling.
  • Visual indication of make-up.
  • Elastomer o-ring seals.
  • Low torque, fast make-up.
  • Pre-loaded.
Data Table
Pipe Nominal OD Pipe Wall Thickness Grade X-52 Grade X-56
Tension Yield
(kips)		 Bending Yield
(kips.ft)		 Burst Pressure
(psi)		 Collapse Pressure
(psi)		 Tension Yield
(kips)		 Bending Yield
(kips.ft)		 Burst Pressure
(psi)		 Collapse Pressure
(psi)
18.625 in
473 mm		 0.435 in
11 mm		 1300 481 2138 638 140 518 2302 638
20 in
508 mm		 0.438 in
11.1 mm		 1398 558 1991 514 1506 601 2144 514
20 in
508 mm		 0.5 in
12.7 mm		 1593 631 2275 772 1715 680 2450 772
20 in
508 mm		 0.625 in
15.9 mm		 1978 774 2844 1415 2130 834 3063 1449
20 in
508 mm		 0.812 in
20.6 mm		 2547 978 3697 2451 2743 1054 3981 2518
20 in
508 mm		 1 in
25.4 mm		 3104 1170 4550 3904 3343 1260 4900 4089
24 in
610 mm		 1 in
25.4 mm		 3757 1729 3792 2612 4046 1862 4083 2692
26 in
660 mm		 0.75 in
19.1 mm		 3094 1582 2625 1165 3332 1704 2827 1182
26 in
660 mm		 1 in
25.4 mm		 4084 2049 3500 2163 4398 2206 3769 2252
30 in
762 mm		 1 in
25.4 mm		 4738 2770 3033 1631 5102 2983 3267 1681
30 in
762 mm		 1.5 in
38.1 mm		 6984 3950 4550 3904 7521 4254 4900 4089
36 in
914 mm		 1 in
25.4 mm		 5718 4057 2528 1054 6158 4369 2722 1063
36 in
914 mm		 1.5 in
38.1 mm		 8454 5834 3792 2612 9104 6283 4083 2692
36 in
914 mm		 2 in
50.8 mm		 11110 7457 5056 4766 11960 8031 5444 5021
