UDT Lynx
Connectors
UDT Lynx connectors are suitable for application that require fast make-up without rotation.

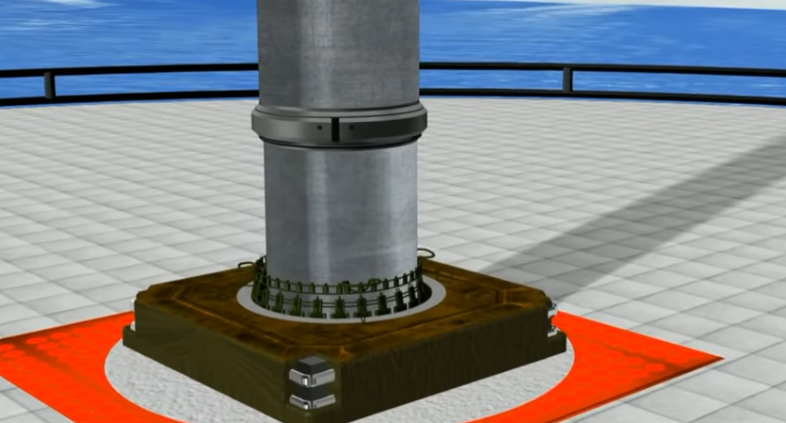

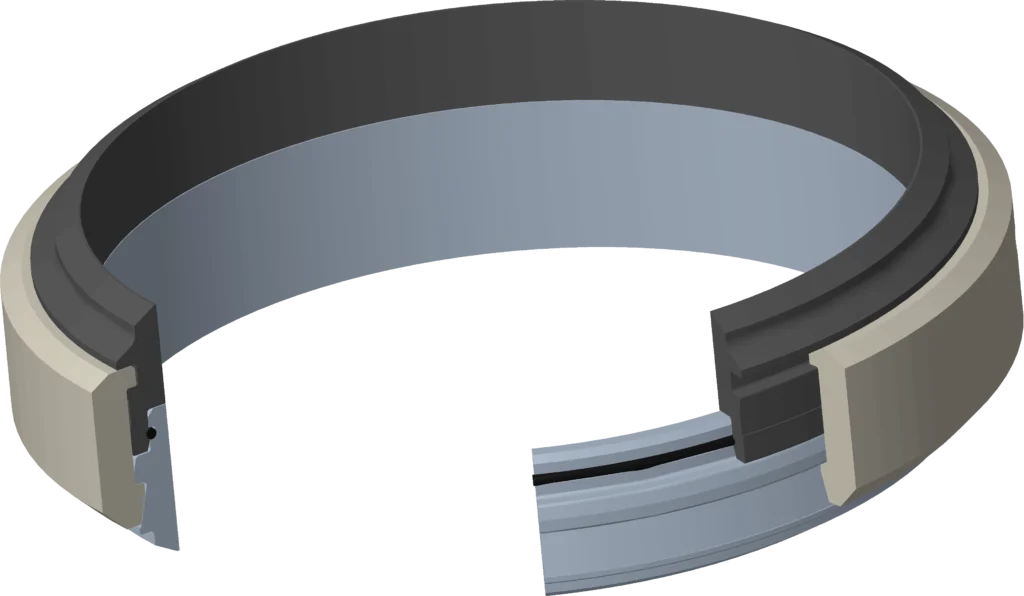

UDT LYNX sa2 (standard duty)

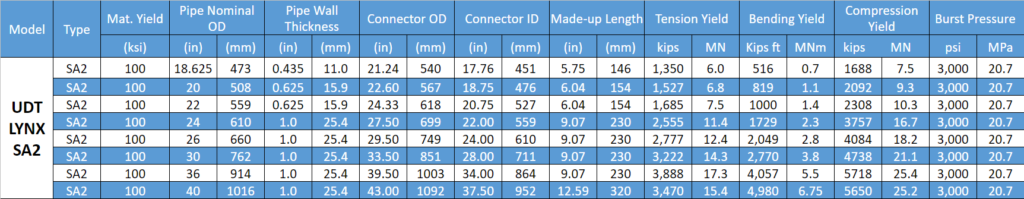

UDT Lynx connectors are suitable for application that require fast make-up without rotation. It is the simplest type of connector requiring no special tools during installation.

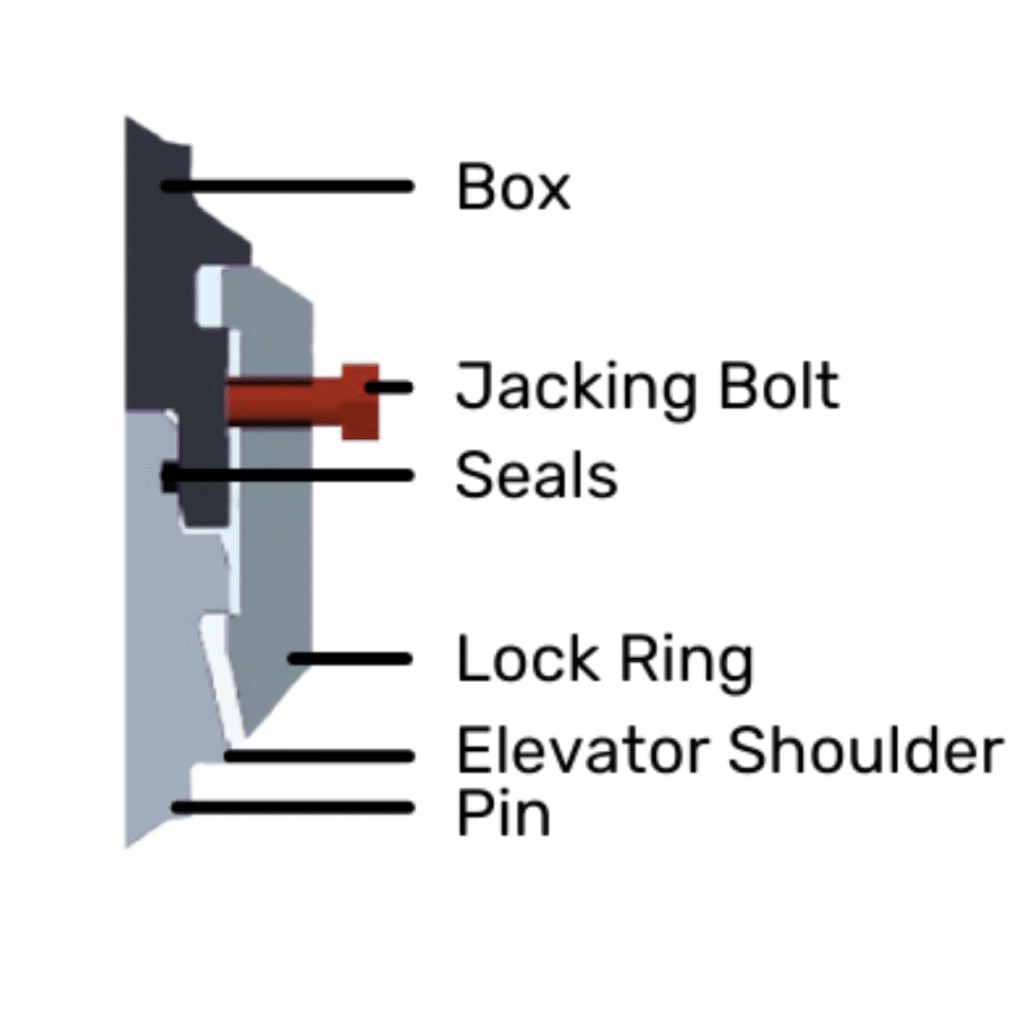

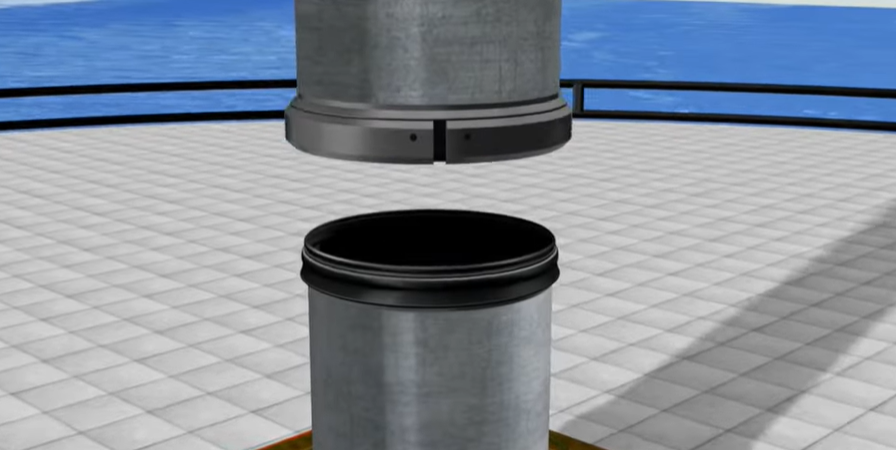

All Lynx models stab easily, self-align axially and assemble underthe weight of the joint. When the box is stabbed over the pin, joint weight expands the lock-ring, the abutment faces meet and the lock-ring snaps closed. Full make-up is visually confirmed by inspection of the lock-ring. Lynx connectors disengage by running jacking bolts through the lock-ring to release the pin.
Special Features of UDT-Lynx Connectors
- Weight-set for easy stabbing, no rotation required
- Assembly requires no special tools or personnel
- Suitable for Piling
- Visual indication of make-up
- Quick-Release
- Reusable

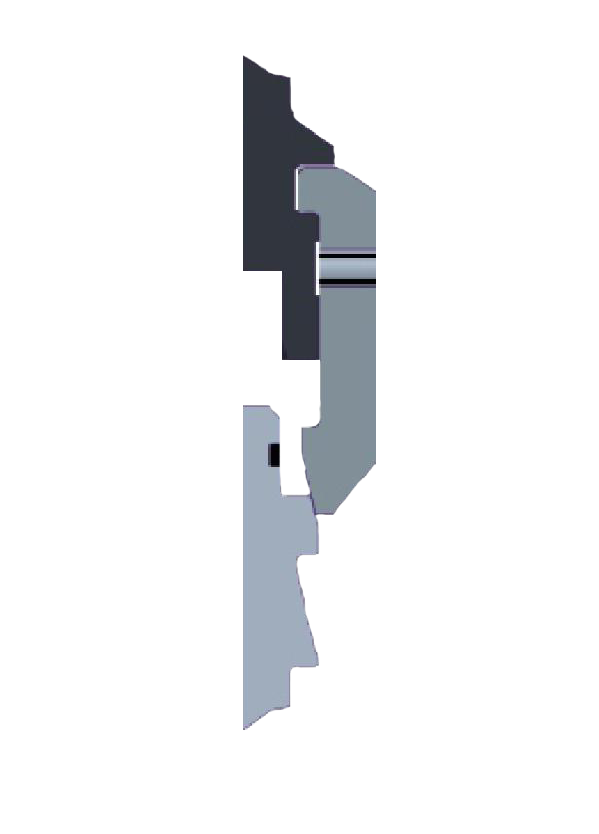

Lock Ring Contacts Pin

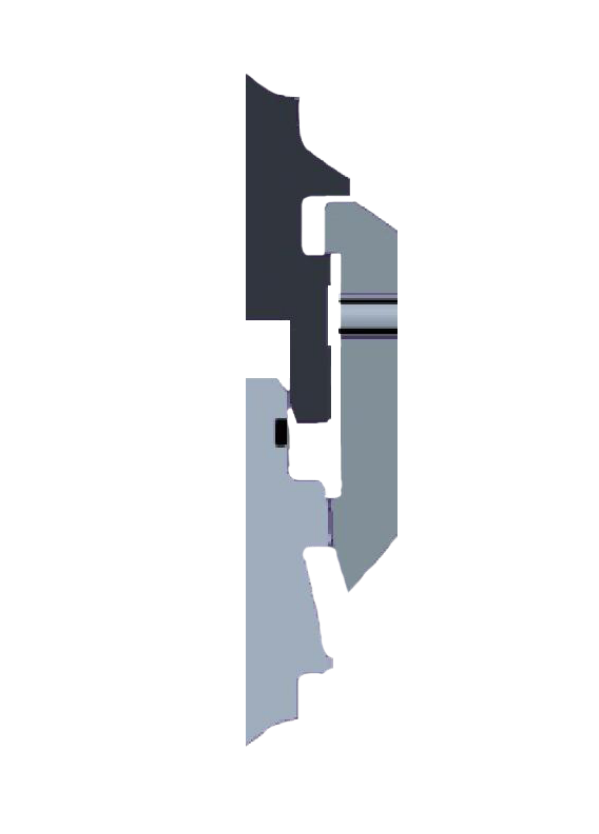

Joint Weight Spreads Lock Ring
Lock Ring Snaps Closed
Jacking Bolt Release Lock Ring on Breakout

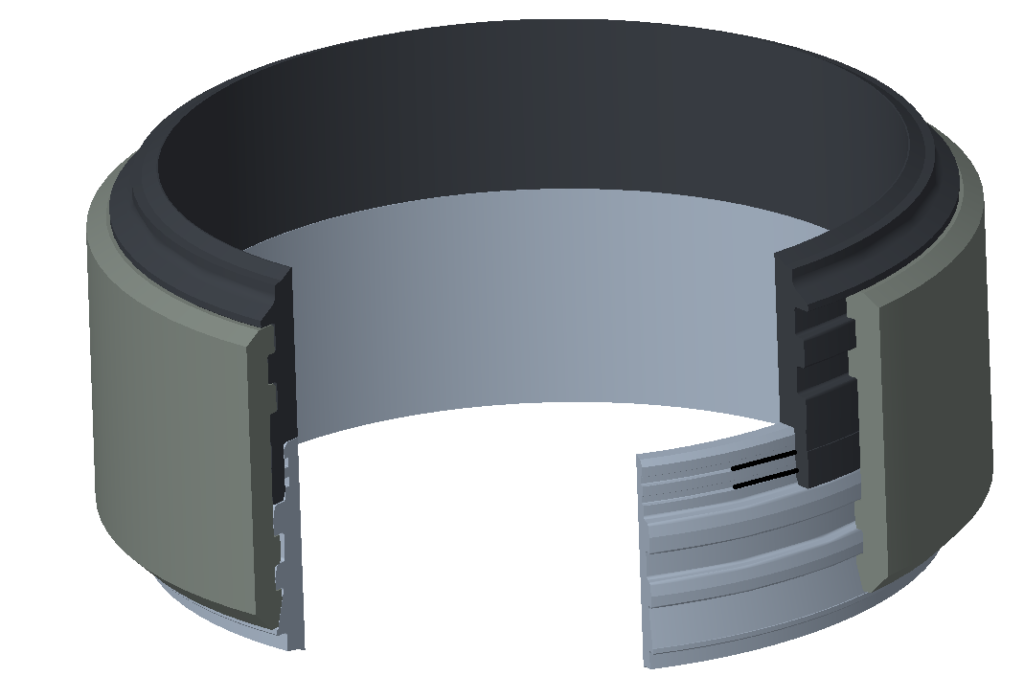

UDT LYNX HD (heavy duty)

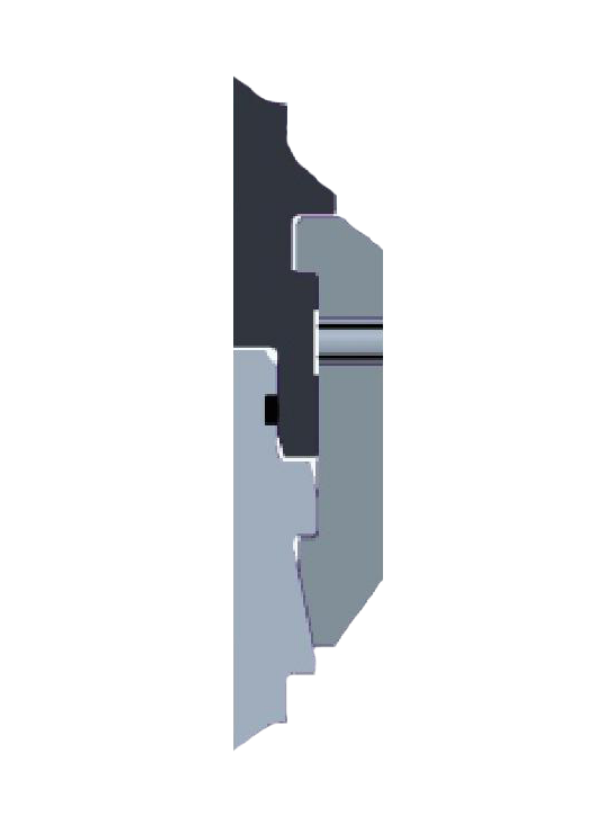

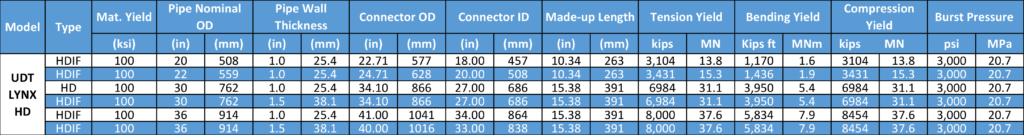

UDT Lynx HD is a heavy duty model which utilizes a twin load shoulder to increase capacity. The design of the lock-ring provides a positive lock of the pin and box members.
UDT LYNX HDHT ( heavy duty high torque)

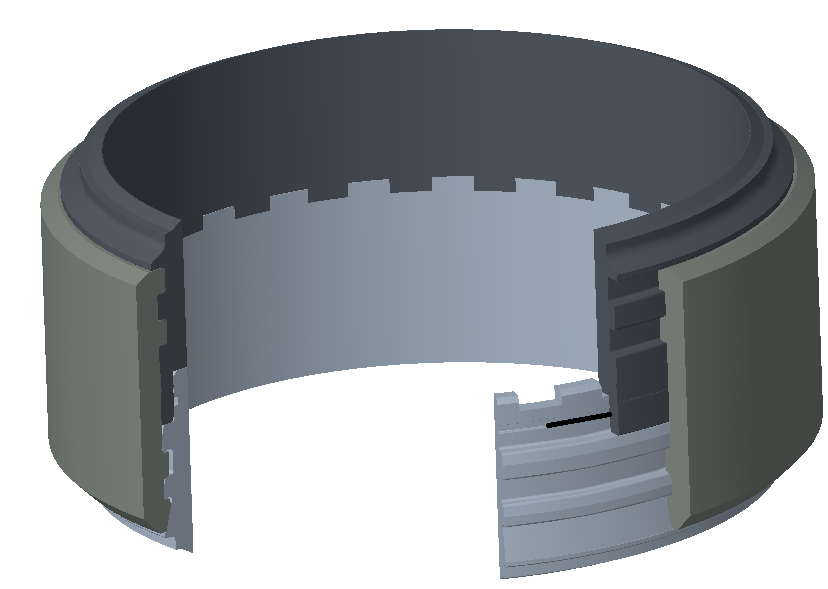

UDT LYNX HDHT is a heavy duty model which utilizes a twin load shoulder in addition to integral castellations for high torque applications.
Key features of all UDT Swift Connectors

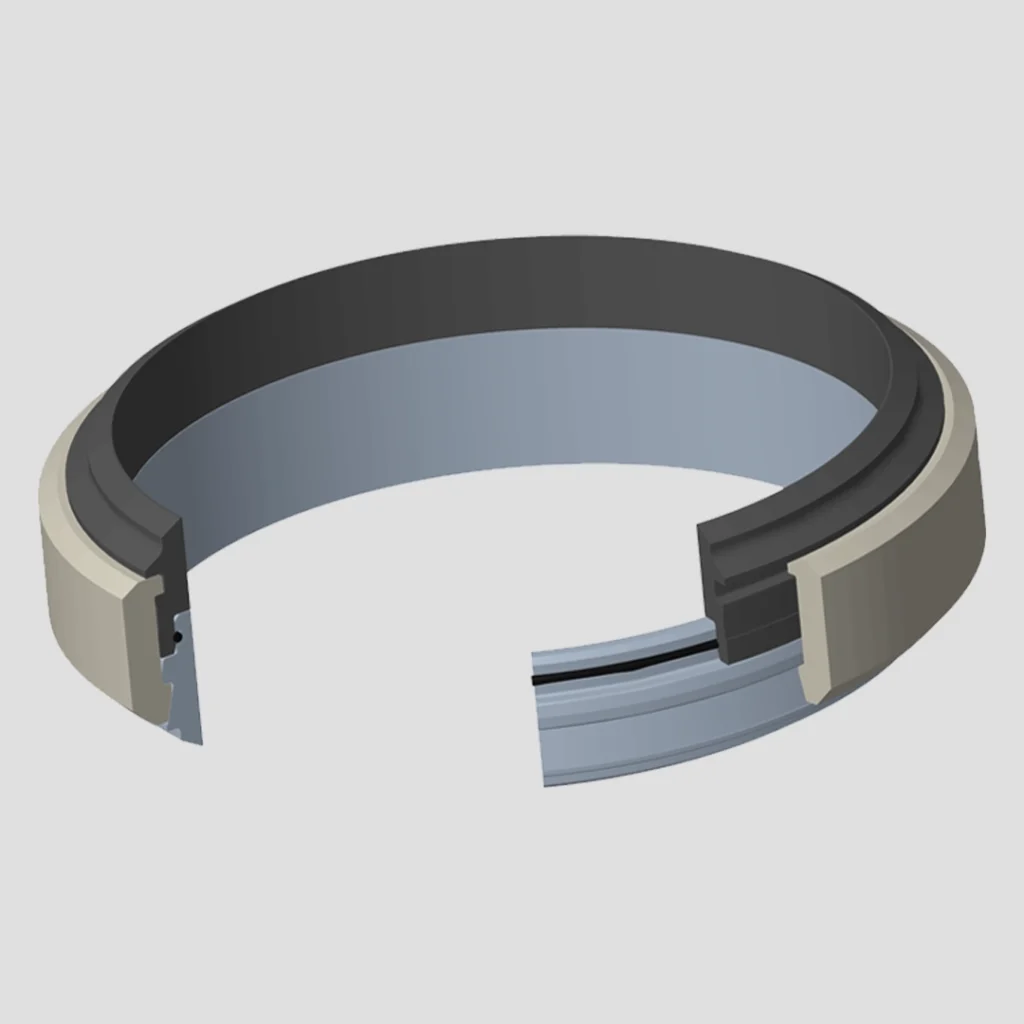

UDT Lynx SA2

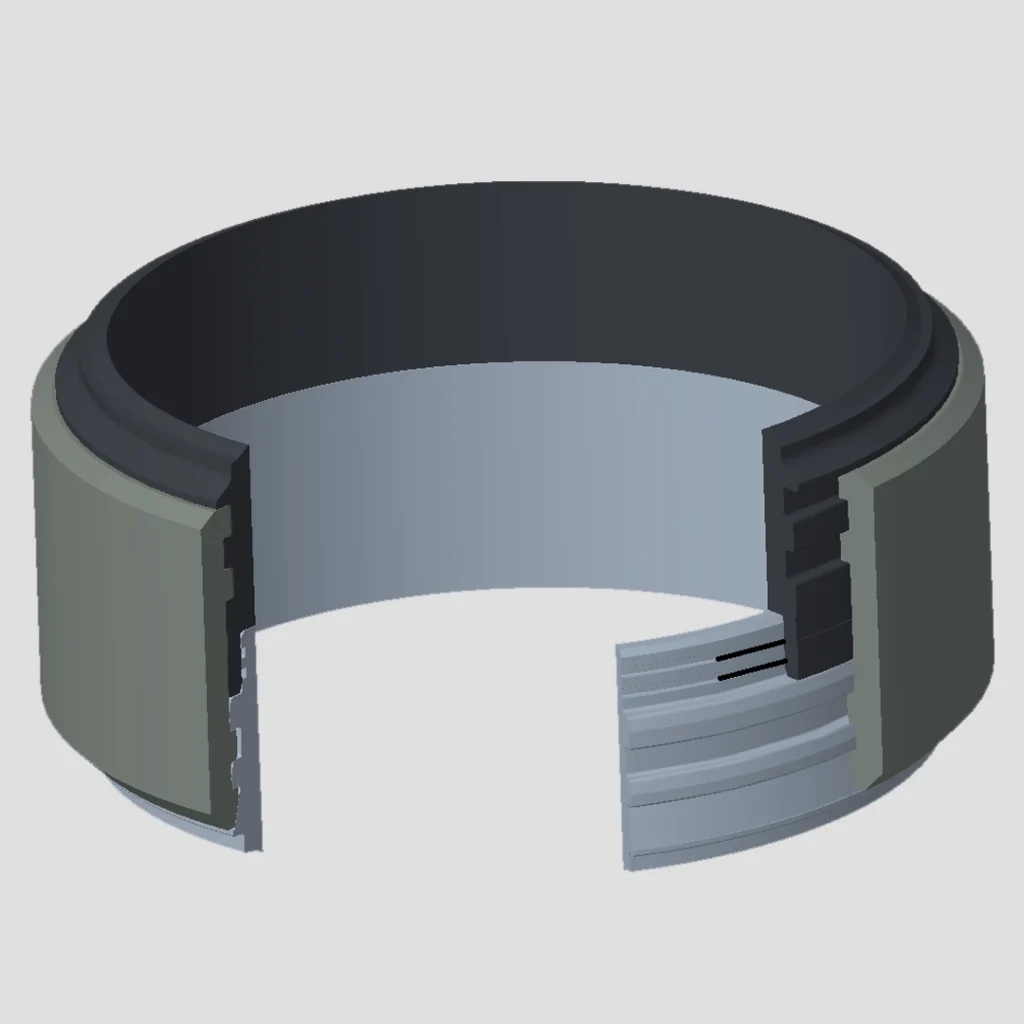

UDT Lynx HD

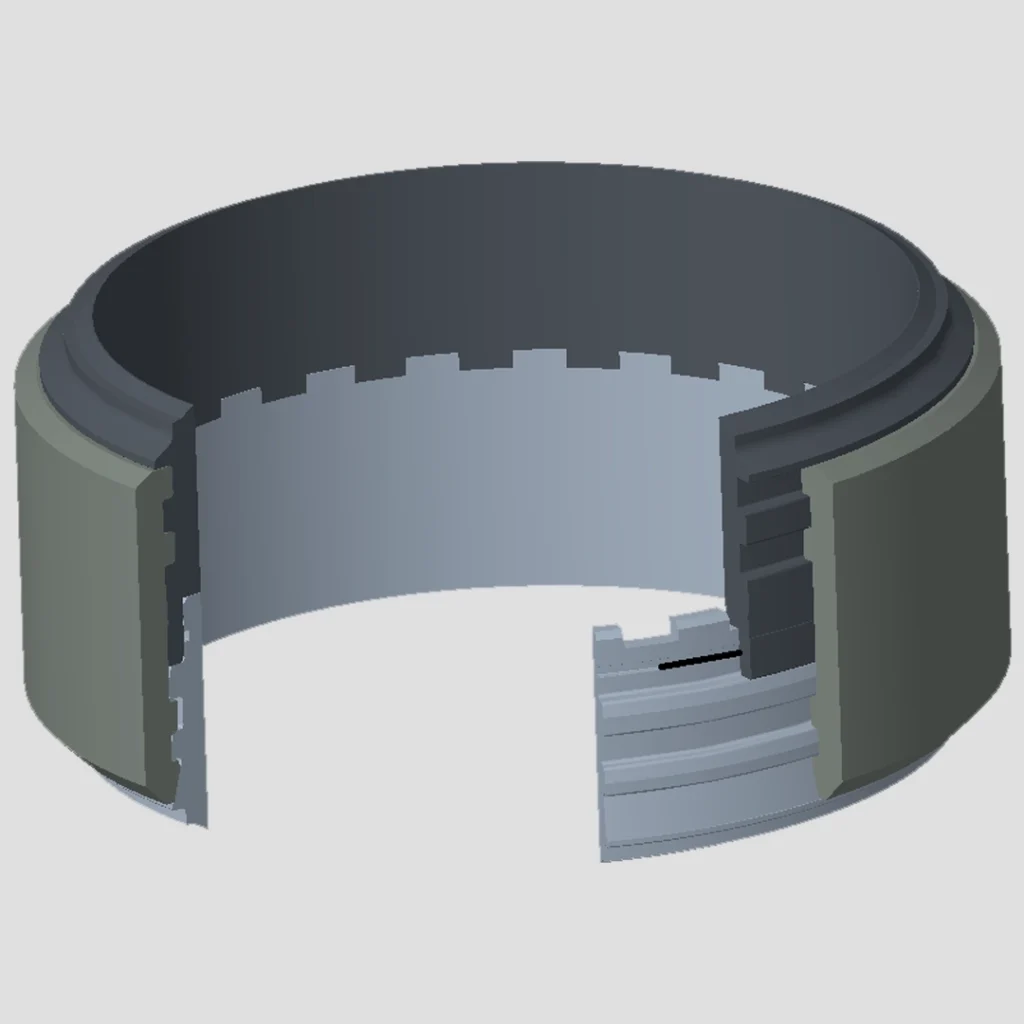

It is a heavy duty model which utilizes a twin load shoulder to increase capacity. The design of the lock-ring provides a positive lock of the pin and box members.
UDT Lynx HDHT
It is a heavy duty model which utilizes a twin load shoulder in addition to integral castillations for high torque application. The design of the lock-ring provides a positive lock of the pin & box members.
