UDT Landline
These units are used in onshore areas (Rig safe zones) and can be used for Production and Reservoir operations.
UDT Landline

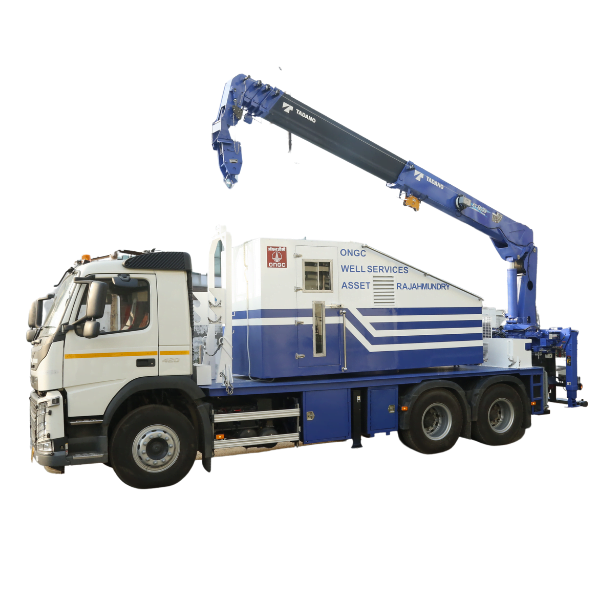

Land Line Winch consists of Reel Skid (includes Drum compartment and operator cabin) and crane mounted on the rear of truck chassis delivering power from 280 HP to 420 HP. The operator cabin swivels on the top of the truck chassis. This is compact , versatile , self contained wireline winch unit may be supplied in single or dual drum configuration.
Key features of all UDT Landline
Self-aligned & no cross threading
Strength characteristics higher than casing pipe.
Make-up in 4 turn from stab to full make up
4 turn rotation make-up prevents connector back-off
Suitable for piling/jetting.
Visual indication of make-up
Low torque make-up with rig tongs.
Preloaded for fatigues.
High-pressure sealing.
Reversible and reusable
WINCH SYSTEM
- 8 Ton Maximum capacity hydraulic telescopic boom crane rear mounted on truck chassis with 51 ft boom.
- Drum capacity – 25, 000 ft to 30,000 ft.
- Overload prevention safety system in crane
LINE SPEED & LINE PULL
- Max line speed at core – 1600 ft/min
- Max line speed at rim/surface – 2700 ft/min
- Max line pull at core – 9000 lbs
- Max line pull at rim/surface – 5000 lbs
- Line speed and line pull can be customised.
MEASURING HEAD
- Compact & light weight two or three wheel wrap-around design and no change of wheel is required with the change of wire. Make:Benchmark or equivalent.
- Wire or cable can be removed from measuring head without cutting the wire.
HYDRAULIC SYSTEM
- Powerful 5,000 psi closed loop hydraulic system.
- Truck PTO driven hydraulics.
- Effective fast acceleration and extremely high speeds for effective jarring
- Hydraulic tank – 450 litres.
OPERATOR CONSOLE
- Hydraulic double lever Joystick for drum rotation, pump and motor displacement control.
- Engine Throttle Control.
- Hydraulic Pressure Gauges.
- Brake Control.
- Drum Selector.
- Spooling arm and side shift control.
OPTIONS
- Zone-2 rated with integrated diesel engine driven hydraulic power-pack with Atex certified engine.
- Crane options: 3 Ton, 5 Ton, 15 Ton, 23 Ton
- Touch Screen winchman panel.
- On board hydrostatic pressure test system up to 15K psi.
