UDT Surveyline
The light weight frame incorporates a lifting eye for crane handling.

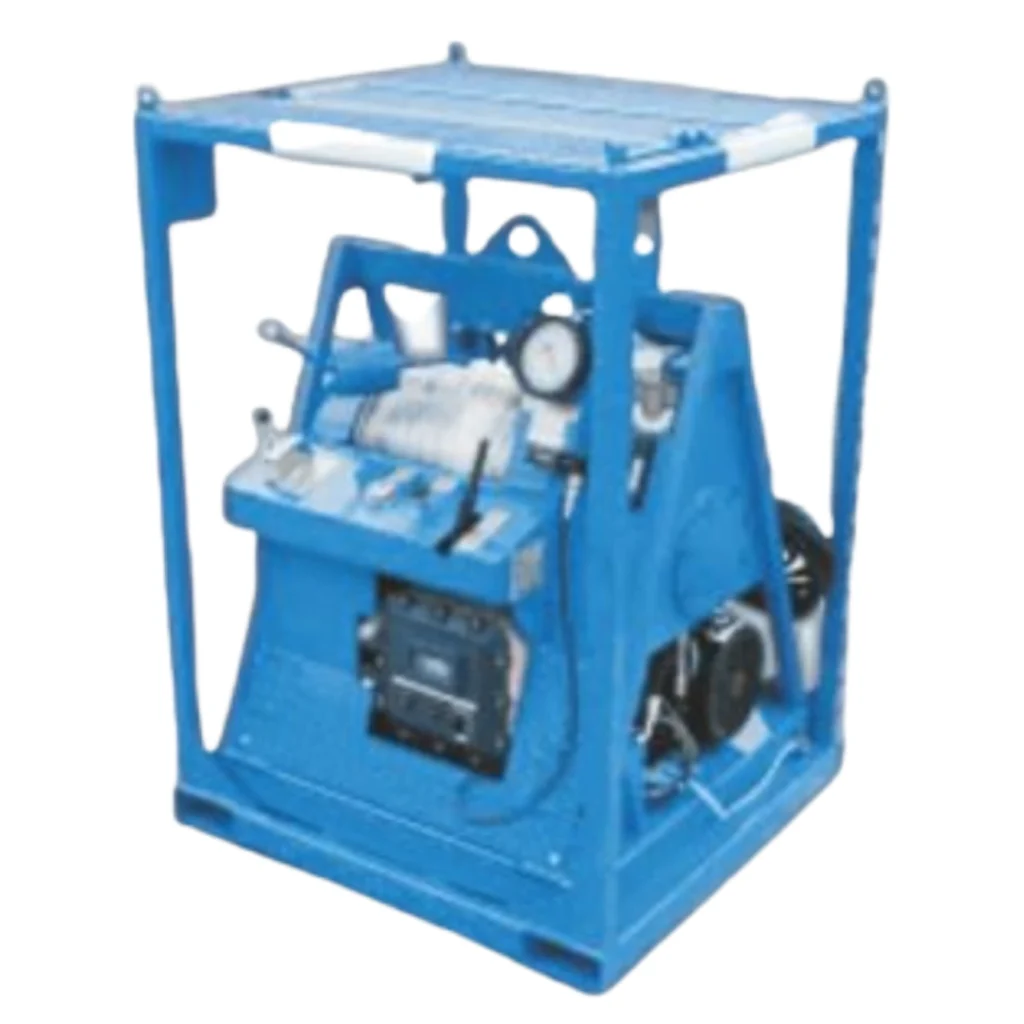

UDT SURVEYLINE Winch
This is a skid mounted, self contained, steel skid base structure, single drum wireline unit designed to provide a light weight, compact winch for performing light duty slickline operations.
The light weight frame incorporates a lifting eye for crane handling. Surveyline Winch can be used for Bailing, Fluid level testing, Paraffin cutting, Setting and Retrieving tools and Tag bottom.
Key features of all UDT SURVEYLINE
Self-aligned & no cross threading
Strength characteristics higher than casing pipe.
Make-up in 4 turn from stab to full make up
4 turn rotation make-up prevents connector back-off
Suitable for piling/jetting.
Visual indication of make-up
Low torque make-up with rig tongs.
Preloaded for fatigues.
High-pressure sealing.
Reversible and reusable
WINCH SYSTEM
- Single Drum suitable for slickline wire having capacity from 0.092’’ x 20000 ft to 0.108’’x 15000 ft.
- Winch drum is driven by hydraulic motor via 3 speed gearbox with duplex chain and sprocket system.
- Mechanical braking system.
DEPTH AND TENSION SYSTEM
- Compact and light weight single wheel measuring head system.
- Measuring head include inbuilt depthometer for measuring depth.
- Tension can be measured using weight indicator and load cell.
HYDRAULIC SYSTEM
- Powerful open loop hydraulic system with low maintenance for trouble free operation.
- Hydraulic tank – 150 litres.
LINE SPEED & LINE PULL
- Max Line speed at rim of drum: 350 ft/min
- Line pull at core of drum: 1550 lbs+
- Line speed and line pull can be customised.
POWER PACK
- 20 hp Electrical motor driven hydraulic power pack
CONTROL PANEL
- Control panel with all the controls and gauges are easily accessible by operator.
- Ergonomic, safe & responsive operator controls.
