UDT Truckline
These units are used in onshore areas (Rig Safe Zones) and can be used for Production and Reservoir operations.
UDT Truckline

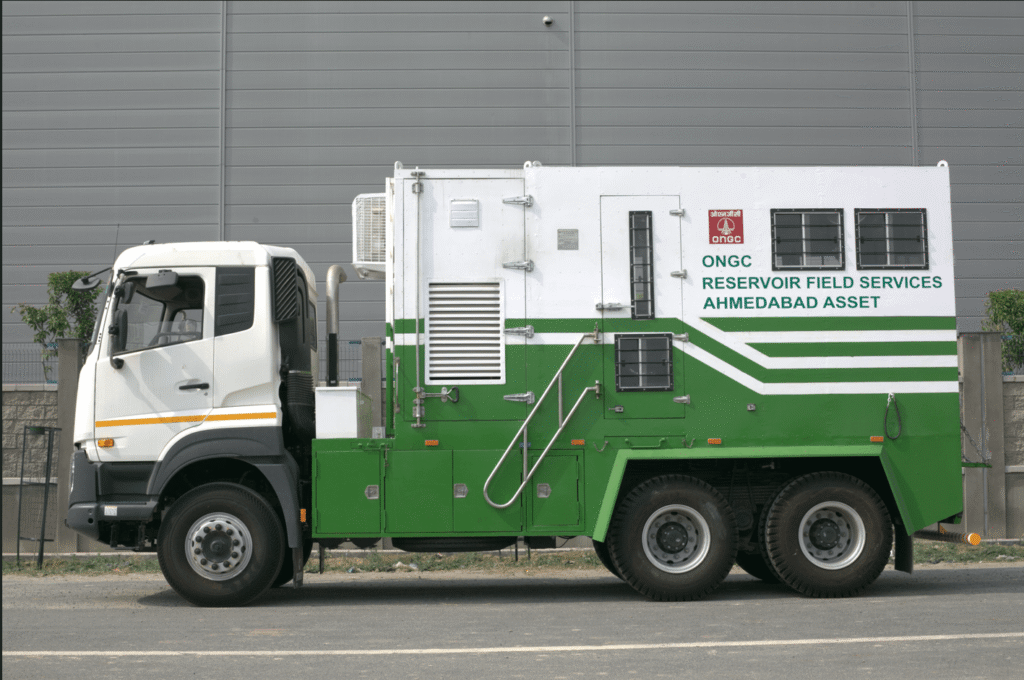

UDT make Truckline unit is a truck mounted wireline winch unit consisting of reel skid and power skid suitably mounted on right hand 6×4 drive truck chassis delivering power from 200 HP to 420 HP.
Key features of all UDT Truckline
Self-aligned & no cross threading
Strength characteristics higher than casing pipe.
Make-up in 4 turn from stab to full make up
4 turn rotation make-up prevents connector back-off
Suitable for piling/jetting.
Visual indication of make-up
Low torque make-up with rig tongs.
Preloaded for fatigues.
High-pressure sealing.
Reversible and reusable

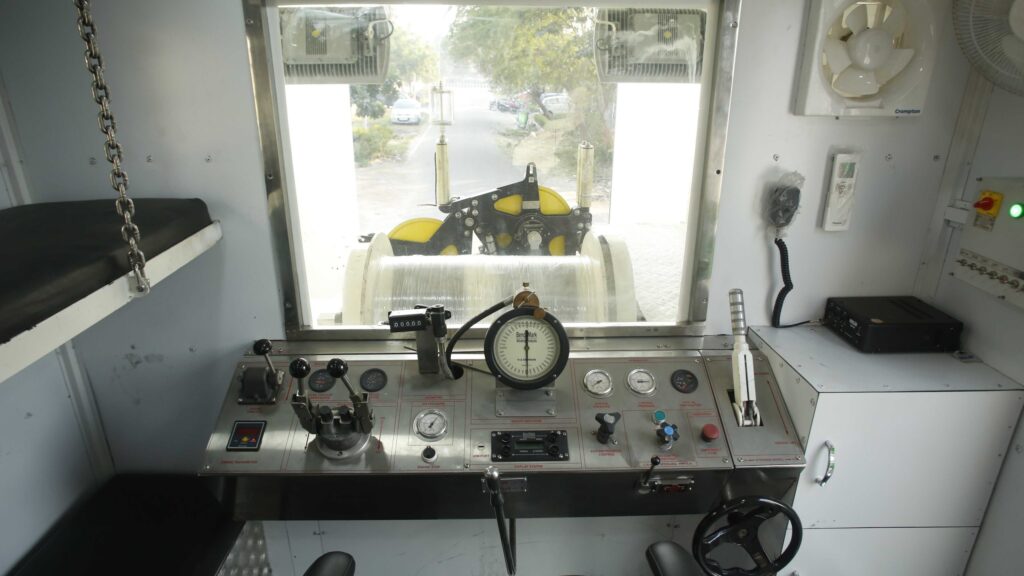

WINCH SYSTEM
Application:
- Slickline 0.092”, 0.108”, 0.125”,0.140” & 0.160”.
- Drum capacity – 25, 000 ft to 30,000 ft.
- Winch drum is driven by hydraulic motor via planetary gearbox with chain sprocket system.
- Fail safe spring return braking system.
- Over-pull shut-down system: Stop winch rotation on preset desired over pull.
- Equivalent to ASEP Spooling arm or overhead spooling arm.
UDT Flyline
UDT make Skid mounted one or two piece wireline unit comprising power pack module with 84-125 hp diesel engine and winch unit. This is compact , versatile , self-contained.
UDT Truckline
UDT make Truckline unit is a truck mounted wireline winch unit consisting of reel skid and power skid suitably mounted on right hand 6x4 drive truck chassis delivering power from 200 HP to 420 HP.
UDT Landline
Land line winch consists of Reel Skid (includes Drum compartment and operator cabin) and crane mounted on the rear of truck chassis delivering power from 280 HP to 420 HP.
UDT Scraping Winch
This is a Skid/trailer mounted, self contained, steel skid base structure, single drum wireline unit designed to provide a light weight, compact winch for performing light.
UDT Survey Line
This is a Skid/trailer mounted, self contained, steel skid base structure, single drum wireline unit designed to provide a light weight, compact winch for performing light.
